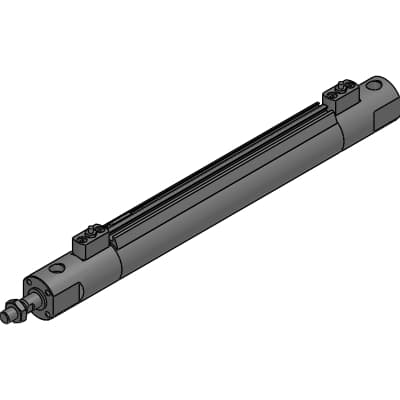

HCM-00-40B-200-T0H-R
Product ID:52817
Updated: 2026/7/14
Key Features
- 1High energy absorption with both sides cushioned for enhanced performance.
- 2Double acting operation with compressed air, suitable for various industrial applications.
- 3Customizable stroke length available in 1 mm increments for precise control.
- 4Operating speed range of 50 to 2000 mm/s, accommodating high-speed operations.
- 5Compatible with proximity T0H switch, ensuring reliable actuation and control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCM | Bore size | 40mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke input | 200mm |
| Switch model No. | T0: Reed, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire | Blank: None | Lead wire length | Blank: 1 m (standard) |
| Switch option | Blank: None | Switch quantity | R: 1 on rod side |
| Optional switch rail | None | Optional piston rod material | None |
| Accessory | None | Piston rod position | 0 |
| Product information | Product information | A | 26mm |
| B | 22mm | C | 24mm |
| D | 46mm | DA | M6 depth 10 |
| E | 46mm | EA | 62mm |
| EB | 51mm | EC | 47.3mm |
| EE | Rc 1/4 | F | 29 |
| FA | -mm | FD | -mm |
| FJ | -mm | FF | -mm |
| FG | -mm | FL | -mm |
| FM | -mm | FT | -mm |
| G | 14mm | J | 25mm |
| KK | M14X1.5 | LA | -mm |
| LB | -mm | LC | -mm |
| LD | -mm | LE | -mm |
| LF | -mm | LH | -mm |
| LL | 186 | LR | -mm |
| LS | -mm | LT | -mm |
| LX | -mm | MC | 41mm |
| M | -mm | MM | 16mm |
| MN | 14mm | MO | 7mm |
| N | 2 | QA | 26mm |
| QB | 14mm | SD | 26mm |
| T | 8mm | W | -mm |
| WF | 20.5mm | X | 234.5mm |
| XF | 46.5mm | Y | 28mm |
| GR | 77mm | GH | 66mm |
| GA | 18mm | GB | 25.7mm |
| P | 29.5mm | RD | 12mm |
| HD | 10.5mm |
Specifications may be subject to change without notice
