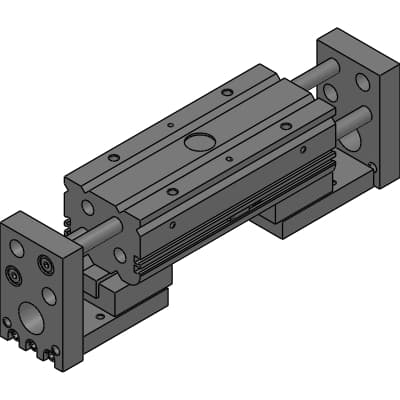

HMFB-40CS-L1-T2H-R
Product ID:52847
Updated: 2026/7/14
Key Features
- 1Long stroke length (60-160mm) for efficient operation.
- 2Powerful gripping force due to double piston mechanism.
- 3Coolant-resistant specifications for durability in harsh environments.
- 4Compact design with low overall height for space-saving utilization.
- 5Easy installation with proximity switches for precise control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | HMFB | Size | 40CS |
| Option | Long stroke 1 | Cylinder bore size | Ø40x2 |
| Length (min-max) | 171mm | Switch model number | T2: Proximity, 1 color indicator type, 2 wire |
| Lead wire | H: Axial | Lead wire length | Blank: 1m (standard) |
| Switch quantity | R: One on open side | Dimension | 170mm |
| Dimension | 251mm | Dimension | 461mm |
| Dimension | 140mm | Dimension | 170mm |
| Dimension | 40.5mm | Dimension | 120.0mm |
| Dimension | 55.5mm |
Specifications may be subject to change without notice
