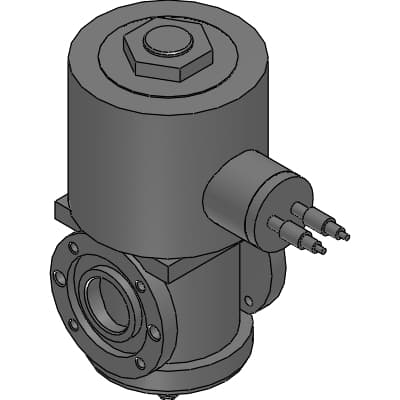

HVB612-12F-8B-AC100V
Product ID:51997
Updated: 2026/7/14
Key Features
- 1High vacuum capabilities with working pressure up to 2.0 x 10^5 Pa(abs).
- 2Direct acting poppet structure for precise fluid control.
- 3Durable design with 2 million cycles of operation.
- 4Low leakage current: 2 mA or less at 100 VAC, 1 mA or less at 200 VAC.
- 5Compatible with a wide range of ambient temperatures from 0°C to 55°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | HVB612 | Size variation | 6 : 60 mmmm |
| Connection | 12F : Flange φ 48 | Orifice size | 8 : φ 8 |
| Thermal class | B : Class 130 (B) | Option | Blank : None |
| Voltage | AC 100V : 100 VAC 50/60 Hz | A | 60mm |
| B | 117mm | C | 52.0mm |
| D | 49mm | E | 40.0mm |
| F | 4-M4mm | G | 101mm |
| H | 70mm | J | 48mm |
| K | 32mm | L | 77mm |
Specifications may be subject to change without notice
