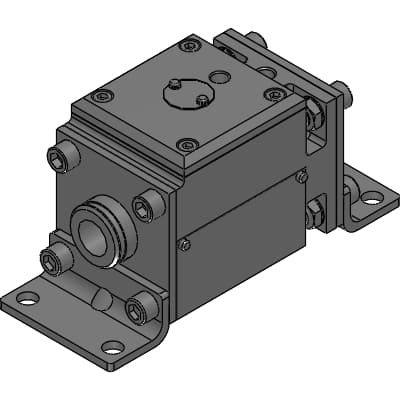

JSB3-LB-35
Product ID:50677
Updated: 2026/7/14
Key Features
- 1High precision rod stopping accuracy ± 1.0 mm or less.
- 2Powerful holding force of up to 20,000 N.
- 3Compact and lightweight aluminum body design.
- 4Easy manual release mechanism with a simple bolt operation.
- 5Suitable for various pneumatic devices and applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | JSB3 | Mounting | LB: Axial foot |
| Rod diameter | 35: ø35mm | Rod length | Blank: Not includedmm |
| Product information | Product information | A | 280.0mm |
| B | 35.0mm | BF | -mm |
| C | 210 | CF | -mm |
| D | 19.5mm | DF | -mm |
| E | 159.5mm | EF | -mm |
| F | 89.5mm | FF | -mm |
| G | 48mm | H | M24 |
| I | Rc1/2 | J | 55.0mm |
| K | 35mm | LL | 100mm |
| LF | -mm | ML | 140mm |
| NL | 85mm | N | -mm |
| O | 109.0mm | PL | 194mm |
| P | -mm | Q | 5mm |
| RL | 20mm | RF | -mm |
| SL | 300mm | SF | -mm |
| TL | 340mm | TF | -mm |
| UL | 19mm | UF | -mm |
| VL | 7mm | M | 140mm |
| MA | 150mm |
Specifications may be subject to change without notice
