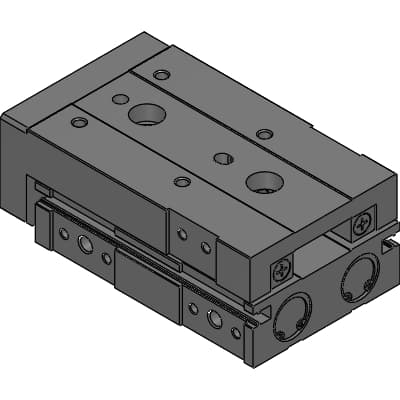

LCV-8-10(0)
Product ID:52735
Updated: 2026/7/14
Key Features
- 1High rigidity linear guide for precise movement.
- 2Flexible design with multi-sided piping and two-sided installation.
- 3Available with rubber cushion stopper, rubber cushion metal stopper, and shock absorber stopper.
- 4Ideal for Z-axis applications and pick/place parts from pallets.
- 5Compatible with compressed air, max working pressure 0.7 MPa, and ambient temperature -10 to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | LCV | Bore size | 8mm |
| Stroke | 10mm | Stroke adjusting stopper | None |
| Option | None | Option | None |
| Stroke position | 0mm | Product information | Product information |
| L1 | 63.5mm | L2 | 54.5mm |
| X | 41.5mm | Y | 14.5mm |
| Z | 14.0mm | N1 | 4pcs |
| P1 | 25mm | N2 | 2pcs |
| P2 | 28mm | HA | 20mm |
| U | 0mm | V | 0mm |
Specifications may be subject to change without notice
