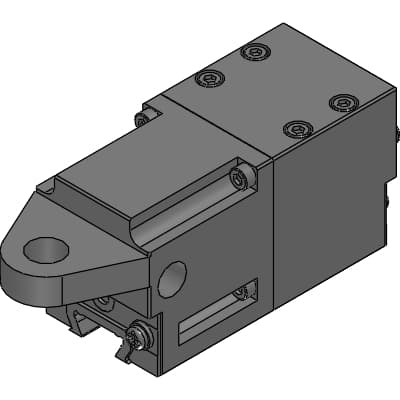

LMB-SR-25
Product ID:52763
Updated: 2026/7/14
Key Features
- 1The LMB-SR-25 provides a maximum static load of 2450 N, ensuring reliable and secure positioning.
- 2Enables emergency stops for safety, ensuring immediate control in critical situations.
- 3Equipped with a dust-proof scraper as standard, protecting the lock unit from environmental contaminants.
- 4The lock mechanism is released by air supply, allowing for manual operation if needed.
- 5Designed for compact installation with a reliable locking mechanism, ideal for table fixing and position locking applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | LMB | Operating rail size | 25:SR-25/SSR-25 |
| A | 125mm | B | 32mm |
| C | 93mm | D | 13.5mm |
| E | 7mm | F | 15mm |
| G | 13.0mm | H | 10mm |
| I | 17mm | J | 27.5mm |
| K | 73.0mm | L | 73.5mm |
| M | 9.0mm | N | 64.0mm |
| O | 27.5mm | P | 55mm |
| Q | 19.5mm | Product information | Product information |
Specifications may be subject to change without notice
