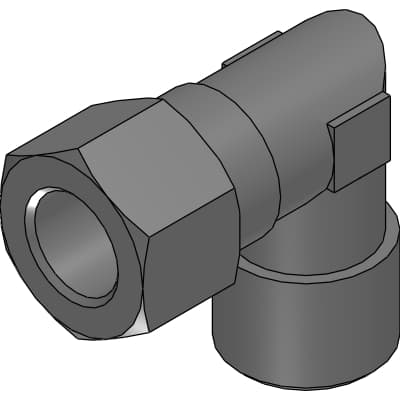

MJL10-10-M
Product ID:52149
Updated: 2026/7/14
Key Features
- 1High Working Pressure: Supports up to 1.0 MPa (≈150 psi) for efficient pneumatic systems.
- 2Durable Construction: Made from copper alloy for long-lasting performance and resistance to corrosion.
- 3Versatile Applications: Suitable for various pneumatic systems, including compressed air, soft nylon tubes, and urethane tubes.
- 4Easy Installation: Features a simple push-in design with double chuck for stable and secure piping.
- 5Compact Design: Ideal for bulkhead, single elbow, and female elbow configurations, ensuring efficient space utilization.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | MJL10-10-M | Compatible tube O.D. | 10 |
| Port size | Rc3/8 | H | 17mm |
| L1 | 27.0mm | L2 | 28.5mm |
| A | 12mm | B | 14.5mm |
| Min. bore | 8.0 | Eff. X-sectional area | 35.7mm^2 |
| Weight | 55g |
Specifications may be subject to change without notice
