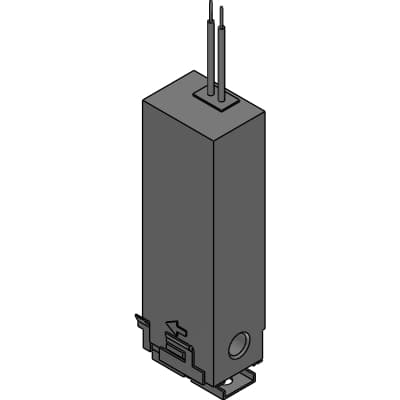

MKB3-M6-PFB-DC24V
Product ID:52261
Updated: 2026/7/14
Key Features
- 1Compact Design: Thin and compact shape of 14.5 mm supports high-density installation.
- 2Energy-Efficient: Built-in energy-saving board reduces heat generated by the coil and power consumption.
- 3Easy Maintenance: One-touch attachment structure allows for easy mounting and removal without tools.
- 4Wide Pressure Range: Working pressure: -0.08 to 0.25 MPa, back pressure: 0 to 0.25 MPa.
- 5Metal-Free Construction: Ideal for medical and analysis equipment due to its metal-free design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | MKB3 | Port size | M6: M6 |
| Material combination | PF: Body PPS, Diaphragm FKM | Substrate option | Blank: No options |
| Mounting plate option | B: With mounting plate (standard) | Voltage | DC24V: 24 VDC |
Specifications may be subject to change without notice
