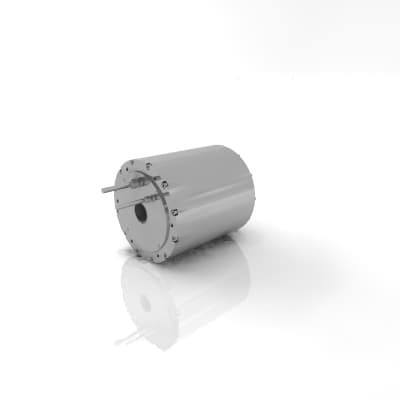

NMR-FSJIA2A-252A
Product ID:50328
Updated: 2026/7/14
Key Features
- 1High precision absolute position detection for accurate control.
- 2Robust performance with a rated torque of 9.6 N·m and max torque of 22 N·m.
- 3Compact design with an outer diameter of 145 mm and height of 71 mm.
- 4Reliable operation with an allowable moment load of 17.3 N·m and axial load of 2.4 kN.
- 5Enhanced maintainability with paired servo drivers like VPH series for efficient control.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Motor type | HD180-200-LS | Model no. | NMR-FSJIA2A-252A |
| Flange type | Flange less | Table surface rotation accuracy | Without : positioning hole accuracy (Standard)μm |
| Power source | 200ACV | Outside diameter | 180mm |
| Height | 200.0 | Rated torque | 68N*m |
| Max torque | 145N*m | Rated rotation speed | 6.0 |
| Rated output | 2.563W | Rated current | 15.7A |
| Encoder type | Incremental | Detection pulse | 3360000ppr |
| Electrical detection resolution | 0.386arcsec | Allowable moment load | 31.9N*m |
| Allowable axial load | 3.2kN | Rotor moment of inertia | 0.0120N*m |
| Mass | 19kg |
Specifications may be subject to change without notice
