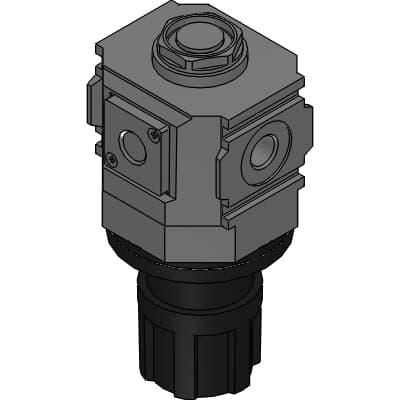

R3000-8-G4-T
Product ID:50211
Updated: 2026/7/14
Key Features
- No key features available for this product.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | R3000 | Port size | 8 : 1/4 |
| Port thread type | Blank : Rc thread | Pressure range | Blank : 0.05 to 0.85 MPa |
| Relief | Blank : With relief mechanism | Pressure gauge | T : No pressure (gauge port(1/4) is assembled sealed) |
| Flow direction | Blank : Standard flow (left → right), knob is on the bottom | Displayed unit | Blank : MPa display, Rc thread |
| Pipe adaptor set (attachments) | Blank : Not attached | Adaptor thread type | Blank : None |
| Attachment bracket type | Blank : Not attached | Attachment gauge type | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/393/R%E2%80%BB%E2%80%BB00-G4?t=list&cid=69&sid=0 |
Specifications may be subject to change without notice
