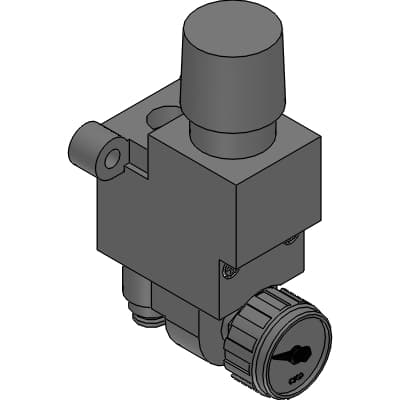

RB500-SSC4
Product ID:50565
Updated: 2026/7/14
Key Features
- 1Compact and space-saving design for easy installation.
- 2Compatible with compressed air and ozone-proof specifications.
- 3Standard pressure gauge: 21 dia. 0 to 1.0MPa; low pressure gauge: 27 dia. 0 to 0.4MPa.
- 4Push-in joint port sizes: 4 and 6 dia.
- 5Integrated reverse flow function for reliable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | RB500 | Connection direction IN | S : Straight |
| Connection direction OUT | S : Straight | Port size | C4 : φ 4 |
| Panel mount | Blank : Without nut | Pressure range | Blank : 0.05 to 0.7MPa (pressure gauge: G29D-6-P10) |
| Relief | Blank : Relief type | Pressure gauge | Blank : With pressure gauge |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/387/RB500%E3%83%BBMNRB500?t=list&cid=69&sid=0&p=2 |
Specifications may be subject to change without notice
