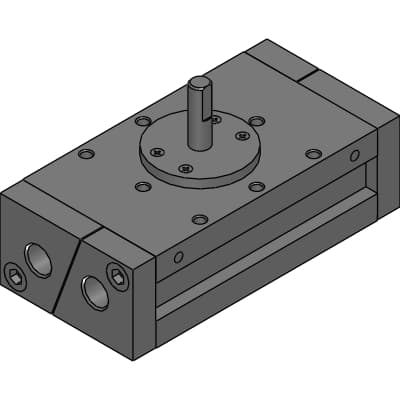

RRC-32-90
Product ID:53151
Updated: 2026/7/14
Key Features
- 1High torque options: 8, 32, and 63 N·m for versatile applications.
- 2Adjustable oscillating angles: 90°, 180°, and 270° for customizable performance.
- 3Robust construction: Designed with compressed air and rubber cushion for durability.
- 4Versatile load handling: Thrust load F1 and radial load F2 options for diverse needs.
- 5Compact size: Ideal for integration into various systems with minimal space requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | RRC | Size | 32 |
| Theoretical torque | 3.1N*m | Oscillating angle | 90: 90°degree |
| Option | None | Position of angle | 0degree |
| Product information | Product information | A | 153mm |
| B | 84mm | C | 33mm |
| D | 31.0mm | E | 20.0mm |
| F | 67mm | G | 3.0mm |
| H | 44mm | I | 10mm |
| J | 8.0mm | K | 13mm |
| L | 3mm | M | 1.8mm |
| N | 10mm | P | 34mm |
| R | 29mm | S | M5 |
| T | 8mm | U | 4.5mm |
| W | 6mm | LMIN | 13.4mm |
| LMAX | 15.5mm | AA | 6.0mm |
| Hexagon head bolt for adjustable angle | M6x0.75 |
Specifications may be subject to change without notice
