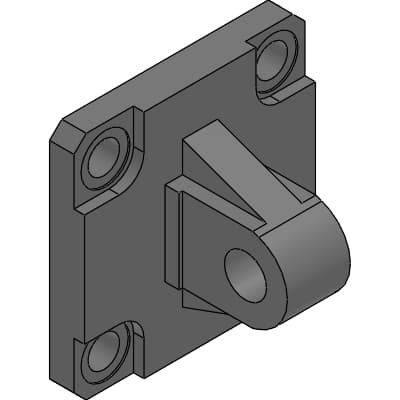

S1-B1-40
Product ID:50661
Updated: 2026/7/14
Key Features
- 1Precision Design: Engineered for precise fits and reliable performance.
- 2Versatile Application: Suitable for SCA2, JSC3, and USC systems.
- 3Single Clevis Bracket: Easy installation with a single clevis bracket.
- 4Quick Shipping: Available for shipment in 4 days or less.
- 5Comprehensive Catalog: Part of CKD's extensive range of cylinder mounting components.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | S1-B1-40 | Applicable bore size | 40mm |
| C | 9mm | CD | 12mm |
| CF | 32mm | CI | 18mm |
| CQ | 18mm | D | 14mm |
| F | 10mm | G | 6.5mm |
| K | 57mm | MR | 12mm |
| SD | 40.5mm | WEIGHT | 0.32kg |
Specifications may be subject to change without notice
