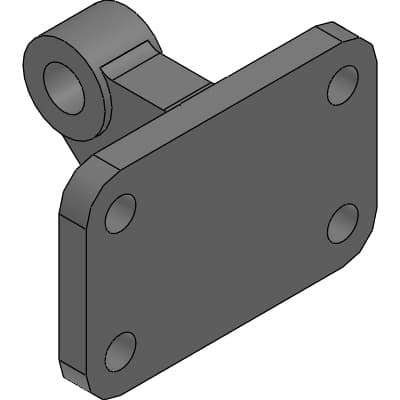

S1-B3-80
Product ID:50672
Updated: 2026/7/14
Key Features
- 1Made from zinc alloy with satellite chrome plating for enhanced durability and resistance to corrosion.
- 2Compatible with SCA2, JSC3, and USC cylinders, offering a wide range of pneumatic system configurations.
- 3Push-to-connect fittings with male BSPT/metric threads for straightforward and secure mounting.
- 4Handles with load controllers ensure waterproof operation in various environments.
- 5Nickel-plated brass for a robust and long-lasting finish, ensuring reliable performance over time.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | S1-B3-80 | Applicable bore size | 80, 100mm |
| C | 14mm | CD | 20mm |
| CF | 65mm | CQ | 28mm |
| D | 20mm | F | 12mm |
| G | 10.0mm | K | 130mm |
| KA | 93mm | KB | 30.0mm |
| MR | 20mm | SD | 100mm |
| SE | 60mm | WEIGHT | 1.64kg |
Specifications may be subject to change without notice
