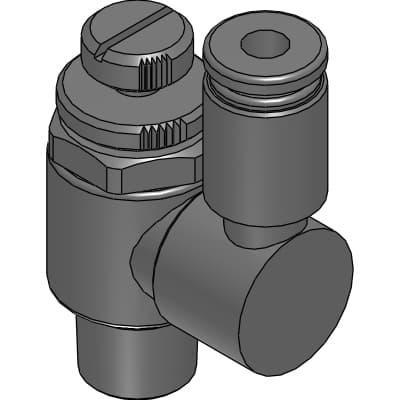

SC3U-15-10
Product ID:50368
Updated: 2026/7/14
Key Features
- 1Universal Piping Direction: Set the piping direction to any angle up to 360° for flexible installation.
- 2Flame-Resistant Resin: Utilizes standard flame-retardant PBT resin (UL94 V-0 equivalent) for enhanced safety.
- 3Quick-Connect Fitting: Easy and secure connection with fluorine-based resin sealant-coated threads.
- 4High Flow Rate: Supports a maximum flow rate of 1500 liters per minute, suitable for demanding applications.
- 5Versatile Compatibility: Compatible with various tube diameters, including Φ10 and Φ12, for broad industrial use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SC3U | Port size | 15: R1/2 |
| Applicable tube O.D.∅ | 10: Ø10mm | Option | Blank : Meter-out |
| Position of knob | 59.1mm | A | 15.0mm |
| B | 33.8mm | D | 27.0mm |
| E | 16mm | F | 17.5mm |
| G | 23.3mm | H | 32.1mm |
| I | 65.9mm | J | 18.8mm |
| Tube insertion length | 21.5mm | L | 24mm |
Specifications may be subject to change without notice
