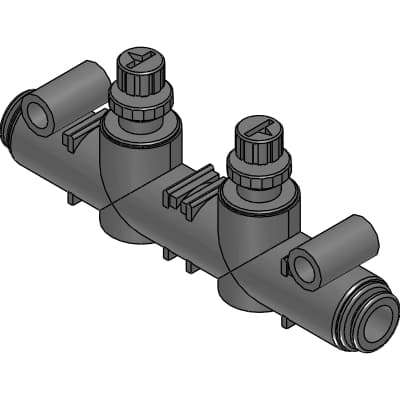

SCD2-10-H88
Product ID:50812
Updated: 2026/7/14
Key Features
- 1Integrated Metering: Controls both air intake and exhaust flow rates for precise speed management.
- 2High Flow Rates: Achieves large flow rates even with a compact body, extending the selection range for cylinder size and speed control.
- 3Compact Design: Offers unrestricted mounting options with a 360° rotating installation area, eliminating the need for mounting brackets.
- 4Fine Speed Control: Simple speed control for low and fine speed areas, as well as small bore size cylinders.
- 5Durable Materials: Standard ozone-resistant materials and flame-resistant resin ensure durability and safety in various environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| MODEL | SCD2 | Body size | 10: 3/8 thread equivalent |
| Applicable tube O.D. | H88: φ 8 | Flow charasteristics | Blank: Standard type |
| Piping size O.D. | φ 8 | Position of knob | 44.0mm |
| B | 29.7mm | C | 20.0mm |
| D | 5.1mm | E | 111.0mm |
| F1 | 20.0mm | F2 | 20.5mm |
| G | 11.0mm | H | 40.5mm |
| I | 11.5mm | J | 87.5mm |
| K | 20 x n +3 | L | 3.6mm |
| Installation hole | 4.3mm | tube insert length | 19mm |
Specifications may be subject to change without notice
