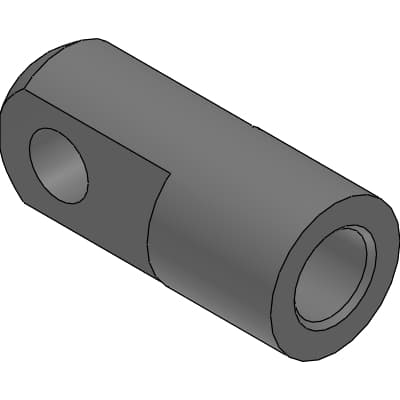

SCG-I-32
Product ID:50665
Updated: 2026/7/14
Key Features
- 1Compact and reliable standard type cylinder with two medium-diameter tie rods.
- 2Highly customizable with options for cylinder inner diameter, stroke length, and additional functions.
- 3Suitable for various environments and applications, including low-friction and non-copper-based materials.
- 4Equipped with air cushion on both sides for enhanced stability and durability.
- 5Available in multiple configurations to meet specific operational needs, ensuring optimal performance in diverse settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SCG-I-32 | Applicable bore size | 32mm |
| AA | 14mm | CA | 30mm |
| CD | 10mm | CW | 14mm |
| D | 20mm | Thread | M10 x 1.25 |
| L | 40mm | MA | 16mm |
| RR | 12.0mm | WEIGHT | 0.07kg |
Specifications may be subject to change without notice
Still deciding on SCG-I-32?
Our engineers can confirm stock, price, and lead time for this CKD Corporation part.
Get a no-obligation quote in 1 minute.
