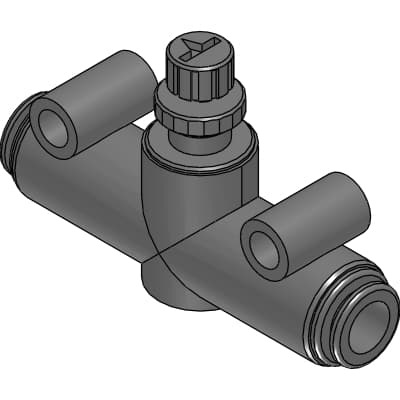

SCL2-04-H22-F
Product ID:51028
Updated: 2026/7/14
Key Features
- 1Precise Flow Control: The SCL2-04-H22-F provides accurate flow rate adjustment with its inline speed controller design.
- 2Compact Design: Equipped with a flat-blade screwdriver groove and ring nut for easy handling and installation.
- 3Versatile Applications: Suitable for clean circumstances, ozone resistance, and various tube diameters (1.8mm to 12mm).
- 4Durable Construction: Built with materials that prevent dust generation and are resistant to copper, silicon, and halogen-based materials.
- 5Easy Installation: Features push-in fittings for simplified tubing connection and a 360° rotating installation area.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | SCL2 | Body size | 04: M5 thread equivalent |
| Applicable tube O.D. | H22: φ 1.8 | Flow charasteristics | F: Fine speed type |
| Piping size O.D. | φ 1.8 | Position of knob | 27.1mm |
| B | 15.3mm | C | 10.0mm |
| D | 4.5mm | E | 50.8mm |
| F1 | 10.0mm | F2 | 10.6mm |
| G | 7.0mm | I | 6.6mm |
| J | 27.8mm | K | 10 x n + 3.2 |
| L | 2.9mm | Installation hole | 3.3mm |
| tube insert length | -mm |
Specifications may be subject to change without notice
