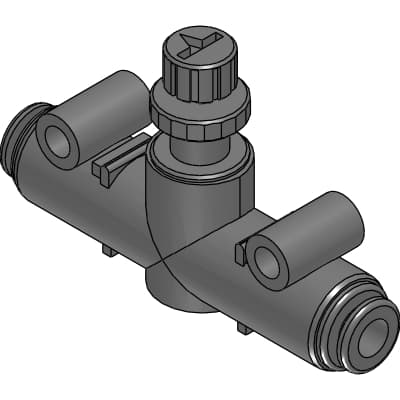

SCL2-N-08-H66-300
Product ID:50804
Updated: 2026/7/14
Key Features
- No key features available for this product.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | SCL2-N | Body size | 08: 1/4 thread equivalent |
| Applicable tube O.D. | H66: φ 6 | Flow rate type | 300: Max flow rate: 300 ℓ/min, Effective cross sectional area: 4.5 ㎟ |
| Option | Blank: Standard specifications | Piping size O.D. | φ 6 |
| Position of knob | 38.0mm | B | 22.9mm |
| C | 15.0mm | D | 5.6mm |
| E | 64.0mm | F1 | 15.0mm |
| F2 | 15.5mm | G | 11.0mm |
| I | 9.5mm | J | 41.0mm |
| K | 15 x n + 4 | L | 3.6mm |
| Installation hole | 4.3mm | tube insert length | 18mm |
Specifications may be subject to change without notice
