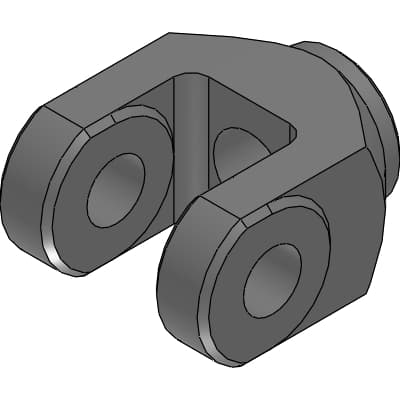

SCM-Y-80
Product ID:52873
Updated: 2026/7/14
Key Features
- 1High-Quality Material: Made from durable cast iron for long-lasting performance.
- 2Configurable Design: Adjustable to fit various tube sizes with M22 thread and 1.5mm pitch.
- 3Versatile Application: Suitable for automotive, semiconductor, and medical industries.
- 4Easy Installation: Female thread mounting method simplifies setup and integration.
- 5Accessory Included: Comes with attachment for added functionality and convenience.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SCM-Y-80 | Bore size | 80 |
| A | 71mm | AB | 23.0mm |
| CA | 50mm | CD | 18mm |
| CV | 56mm | CW | 28mm |
| E | 38mm | KK | M22x1.5 |
| MB | 27.0mm | RR | 21.0mm |
| RS | -mm | Applicable pin No. | SCM-P-80 |
| Weight | 590g |
Specifications may be subject to change without notice
