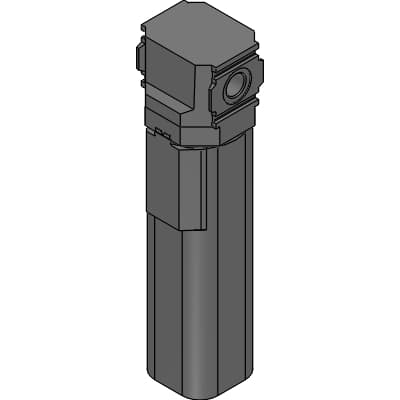

SD302D-05-W
Product ID:50948
Updated: 2026/7/14
Key Features
- 1High polymer membrane technology for effective moisture removal.
- 2Non-front dry operation ensures continuous performance without interruptions.
- 3Non-moving parts reduce maintenance needs and extend the lifespan.
- 4Freon-free and electricity-free design, environmentally friendly and energy-efficient.
- 5Compact design with a slim body, ideal for integrating into various systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SD302D | Inlet air pressure | 05 : 0.5 MPa |
| Option : Bracket | Blank : None | Option : Common exhaust | Blank : None |
| Option : Reversed inlet and outlet | Blank : None | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/84/SD%E3%83%BBSU%E3%83%BBSDM?t=list&cid=75&sid=0 |
| A | 63mm | B | 63mm |
| C | 245mm | D | 67mm |
| E | 45mm | F | 34.5mm |
| G | 16.5mm |
Specifications may be subject to change without notice
