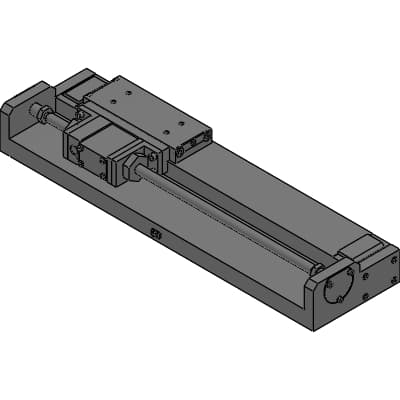

SRT3-00-63B-200
Product ID:50829
Updated: 2026/7/14
Key Features
- 1High precision guided rodless cylinder design for precise applications.
- 2Custom stroke length available in 1 mm increments for tailored solutions.
- 3Compatible with compressed air, operating at max. 0.7 MPa and min. 0.2 MPa.
- 4Durable construction with a max. working pressure of 1.05 MPa and ambient temperature range of 5°C to 60°C.
- 5Integrated switch options including proximity switches for enhanced control and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SRT3 | Mounting | 00: Basic |
| Bore size | 63mm | Stroke | 200mm |
| Cushion | B: With two-sided cushion | Option | None |
| Lot position | 0mm | A | 209.0mm |
| B | 35.0mm | C | 95mm |
| D | 50mm | DC | 39mm |
| DD | 42.0mm | F | 59.0mm |
| G | 112mm | H | 105mm |
| HA | 35.0mm | HB | 52.0mm |
| HC | 20mm | I | 68mm |
| J | 58.0mm | KA | 168.0mm |
| L + stroke | 536mm | L | 336mm |
| LL + stroke | 544mm | LL | 344mm |
| M | - | N | M10 depth 15 |
| O | 9.7mm | P + STROKE | 458mm |
| P | 258mm | Q | Rc1/8 |
| R | Rc3/8 | S | 93.0mm |
| T | 84mm | TA | 168mm |
| TB | 110mm | TC | 102mm |
| TD | 40mm | TE | M8 depth 13 |
| TG | -mm | U | 39.0mm |
| W | 1mm | XF | 210.0mm |
| YA | 98.5mm | YB | 89mm |
| YC | 9.0mm | YD | 10mm |
| Product information | Product information |
Specifications may be subject to change without notice
