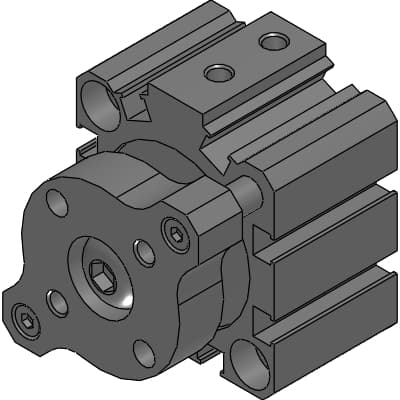

SSG-20-5
Product ID:50122
Updated: 2026/7/14
Key Features
- 1Ideal for space-saving applications with bore sizes ranging from ø12 to ø100.
- 2Provides smooth and efficient operation with double acting single rod functionality.
- 3Built with high-quality materials like aluminum alloy and stainless steel for durability.
- 4Compatible with various mounting pitches and equipped with convenient plates for easy assembly.
- 5Available with or without switches and rubber cushions for customizable performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG | Bore size | 20mm |
| Cushion | Blank: No cushion | Stroke | 5mm |
| Piston rod position | 0mm | Product information | Product information |
| A | 32.0mm | A+STROKE | 37.0mm |
| B | 19.5mm | B+STROKE | 24.500mm |
| C | 8.0mm | D | 5.5mm |
| EE | M5 | F | 36mm |
| G | -mm | H | 10.0mm |
| I | 5.5mm | J | 9 spot face depth 5.5 |
| K | 47mm | KA | M6 depth 11 |
| MM | 10mm | N | 25.5mm |
| NN | M4 | O | 26mm |
| Q | 6mm | R | 4mm |
| U | 17±0.1 | Y | 8mm |
| W | 46mm |
