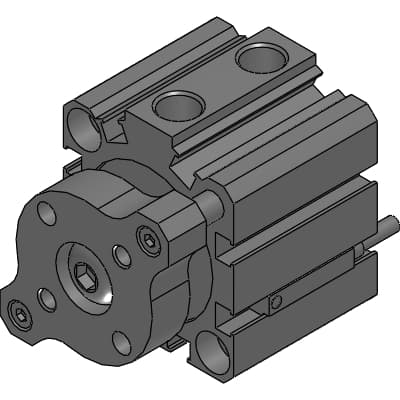

SSG-L-25-5-F2H-R
Product ID:50332
Updated: 2026/7/14
Key Features
- 1Equipped with proximity switches (T2H) for precise control and strong magnetic field proof.
- 2Built with ø25 bore size and rubber cushioned for enhanced durability and smooth operation.
- 3Available in 1 mm increments, including standard strokes of 5 mm.
- 4Supports up to 1.0 MPa working pressure and 1.6 MPa withstanding pressure.
- 5Suitable for programmable controllers, relays, and small solenoid valves, ensuring versatile integration in various systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG-L | Bore size | 25mm |
| Cushion | Blank: No cushion | Stroke | 5mm |
| Switch model No. | F2: Proximity, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire | Blank: None | Lead wire length | Blank: 1 m (standard) |
| Switch option | Blank: None | Switch quantity | R: 1 on rod side |
| Piston rod position | 0mm | Product information | Product information |
| A | 45.5mm | A+STROKE | 50.5mm |
| B | 32.5mm | B+STROKE | 37.500mm |
| C | 11.0mm | D | 6.0mm |
| EE | M5 | F | 40mm |
| G | -mm | H | 11.0mm |
| I | 5.5mm | J | 9 spot face depth 5.5 |
| K | 51mm | KA | M6 depth 11 |
| MM | 12mm | N | 28.0mm |
| NN | M5 | O | 30mm |
| Q | 6mm | R | 5mm |
| U | 22±0.1 | Y | 8mm |
| W | 50mm | HD | 3mm |
| RD | 9.5mm |
Specifications may be subject to change without notice
