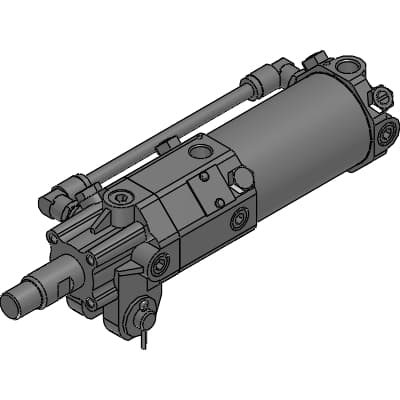

UCAC2-A-50-50-F
Product ID:50734
Updated: 2026/7/14
Key Features
- 1The UCAC2-A-50-50-F operates with double acting, ensuring precise control and reliable performance.
- 2Powered by compressed air, this cylinder offers efficient and consistent operation.
- 3Equipped with strong magnetic field capabilities, it ensures accurate position locking and reliable switching.
- 4Available in various stroke lengths (50, 75, 100, 125, 150 mm), catering to diverse application needs.
- 5Built with high-quality materials, providing long-lasting performance and resistance to harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | UCAC2 | Bore size | 50mm |
| Clevis width | A: 16.5 mmmm | Port thread | Blank: Rc thread |
| Cushion | Blank/H: Head side cushioned | Stroke | 50mm |
| Stroke position | 0mm | Speed adjustment needle | Blank: With both sides |
| Lock direction/bypass tube position | F: Forward lock (bypass tube position F, port position F1) | Accessory | Blank: Without accessory (rod eye) |
| Bellows | Blank: None | Accessory | Blank: None |
| Limit switch mounting base | Blank: None | Product information | Product information |
| A | 60mm | B | 69mm |
| C | 30mm | D | 50mm |
| E | 60mm | F | 61mm |
| G | -mm | L | 141mm |
| LL | 172mm | X | 253mm |
| θ | -° |
Specifications may be subject to change without notice
