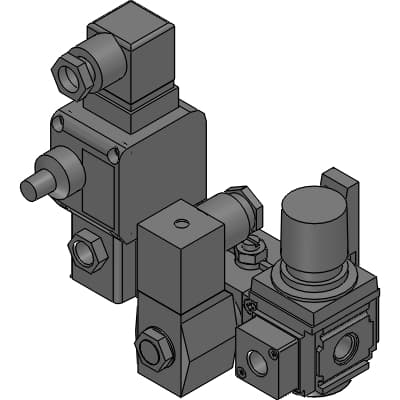

UTLPS-03-1NYF-2E-1
Product ID:52529
Updated: 2026/7/14
Key Features
- 1High accuracy pneumatic pressure sensing.
- 2Compatible with SOLIDWORKS, Inventor, Creo, and more CAD software.
- 3Orifice size φ0.3 for precise measurements.
- 4Ideal for cutting tool applications.
- 5Downloadable 3D CAD models available.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | UTLPS | Orifice size | 03 : For φ0.3 detecting nozzle |
| Station No. | 1 : 1 stations | Output style | N : NPN open collector |
| Lamp color | Y : Yellow | Electric connection option | F : DIN terminal box (Pg11) |
| Bracket | Blank : Without bracket | Pressure gauge | Blank : No pressure gauge |
| Solenoid valve electric connection | 2E : DIN terminal box | Solenoid valve volatege | 1 : 100 VAC |
| A | 151mm | B | 82.5mm |
| C | -mm | Weight | 1070g |
Specifications may be subject to change without notice
