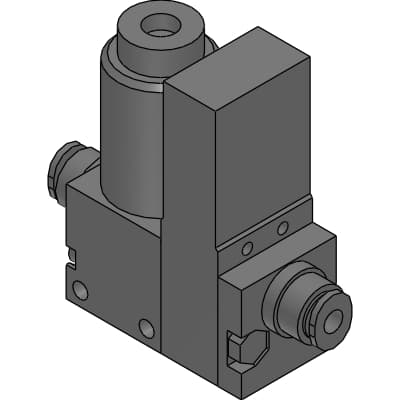

VSG-H05A-44
Product ID:52212
Updated: 2026/7/14
Key Features
- 1High vacuum levels with nozzle diameters of 0.5, 0.7, and 1.0 mm.
- 2Efficient flow rates ranging from 7 to 50 L/min (ANR).
- 3Durable construction with metallic body and nickel-plated brass components.
- 4Versatile design suitable for high-vacuum, middle-flow, and large-flow applications.
- 5Integrated vacuum pressure switch and vacuum burst valve for enhanced functionality.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | VSG | Vacuum Characteristics | H: high vacuum/medium flow type |
| Nozzle diameter | 05: ø0.5 | Unit combination | A: Filter |
| Vacuum port | 4: ø4 push-in joint | Air supply port | 4: ø4 push-in joint |
| Solenoid valve voltage | Blank: no option | Vacuum switch specifications | Blank: no option |
| øD | 6mm | L1 | 12.3mm |
| L2 | 0.0mm | C | 11.9mm |
| Nozzle diameter | 0.5mm | Ultimate vacuum | 90-kPa |
| Suction flow | 7.0ℓ/min | Air consumption | 11.5ℓ/min |
| Weight | 47g |
Specifications may be subject to change without notice
