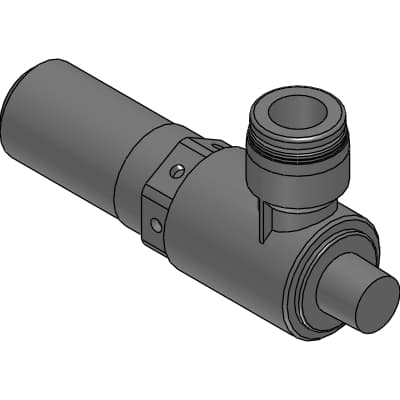

VSH-L15-128AJ
Product ID:50053
Updated: 2026/7/14
Key Features
- 1High-performance compressed air to vacuum conversion.
- 2Compatible with ambient temperatures ranging from 0 to 60°C.
- 3Operating pressure range of 0.15 to 0.7 MPa.
- 4Versatile nozzle diameters available (ø0.5, ø0.7, ø1.0, ø1.2, ø1.5, ø2.0).
- 5Durable construction with nickel-plated brass and PBT resin components.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSH-L15-128AJ | O.D. ϕD | - |
| O.D. ϕD1 | 12 | O.D. ϕD2 | 12 |
| R | R1/4 | A | 11mm |
| B | 76.9mm | L1 | 70.9mm |
| L2 | 16.5mm | P1 | 21.0mm |
| P2 | 22.0mm | C | -mm |
| C1 | 23.4mm | C2 | 23.3mm |
| E | 36.9mm | Opposite side H | 22mm |
| Nozzle diameter | 1.5mm | Working pressure | 0.5MPa |
| Ultimate vacuum | 66kPa | Suction flow | 95.0mm |
| Air consumption | 100.0mm | Weight | 96.5g |
Specifications may be subject to change without notice
