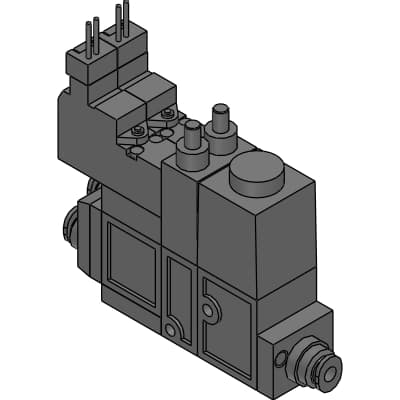

VSJP-A444-1
Product ID:52293
Updated: 2026/7/14
Key Features
- 1Advanced Pressure Control: The VSJP vacuum switching unit offers precise pressure control to prevent workpieces from being blown away.
- 2Relief Function: Equipped with a relief function to shorten vacuum time by relieving extra pressure in the vacuum burst circuit.
- 3Versatile Valve Types: Available in three types of vacuum supply valves: self-hold, normally open, and normally closed for various applications.
- 4Manifold Option: Compatible with manifold setup, reducing piping and enhancing installation flexibility.
- 5High-Performance Design: Designed for high-performance vacuum systems with effective cross-sectional areas of 3.5 and 5 mm².
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSJP | Valve type | A : Normally open type |
| Vacuum port | 4 : φ4 push-in joint | Air supply port | 4 : φ4 push-in joint |
| Vacuum supply port | 4 : φ4 push-in joint | Voltage | 1 : 100 VAC |
| Vacuum switch specifications | Blank : Without vacuum switch | C1PS | 11.5mm |
| C1PV | 11.5mm | C2 | 11.2mm |
| L1PS | 14.9mm | L1PV | 14.9mm |
| L2 | 14.6mm | Weight | 125.5g |
Specifications may be subject to change without notice
