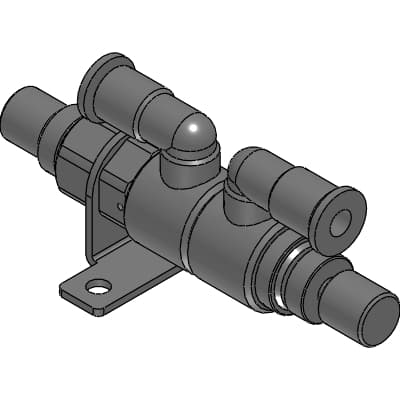

VSLF-44
Product ID:52296
Updated: 2026/7/14
Key Features
- 1The VSLF-44 maintains vacuum characteristics while controlling vacuum burst air.
- 2Integrated pressure and flow rate control prevents workpieces from being blown away.
- 3Provides a relief function in the vacuum burst circuit to shorten burst time.
- 4Tube removal is free due to the rotation of resin body and fitting part.
- 5Available in φ4 and φ6 port sizes for various applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSLF | Vacuum side port size | 4 : ø4 push-in joint |
| Pad side port size | 4 : ø4 push-in joint | D | 4mm |
| C | 11.3mm | E | 16.4mm |
| L1 | 11.8mm | L2 | 13.4mm |
| L3 | 12.2mm | P | 8mm |
| Weight | 36g |
Specifications may be subject to change without notice
