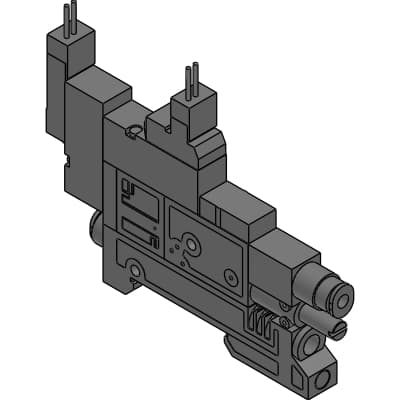

VSX-H05B-44S-1-D
Product ID:52213
Updated: 2026/7/14
Key Features
- 1High Vacuum Performance: Achieve high vacuum levels with the VSX-H05B-44S-1-D, ideal for demanding applications.
- 2Compact Design: The unit's 10.5 mm width allows for easy installation in multiple stations, saving space.
- 3Versatile Installation: Direct mount, side fixing with screws, and DIN rail mount options ensure flexible installation.
- 4Energy-Efficient Valves: Normally closed and energy-saving self-hold valves reduce vacuum burst time and enhance system efficiency.
- 5Advanced Response Time: Realize high-cycle vacuum systems with the best possible response time from the VSX-H05B-44S-1-D.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSX | Vacuum characteristics | H : High vacuum/medium flow rate |
| Nozzle diameter | 05 : φ0.5 | Valve type | B : Normally closed type |
| Vacuum port | 4 : φ4 push-in fitting | Air supply port | 4 : φ4 push-in fitting |
| Exhaust port | S : Atmospheric release with silencer | Voltage | 1 : 100 VACV |
| Vacuum pressure switch specifications | Blank : Without vacuum pressure switch | Mounting method | D : DIN rail installation type |
| C1 | 11.2mm | C2 | 11.2mm |
| L1 | 6.1mm | L2 | 7.5mm |
| Weight | 76g |
Specifications may be subject to change without notice
