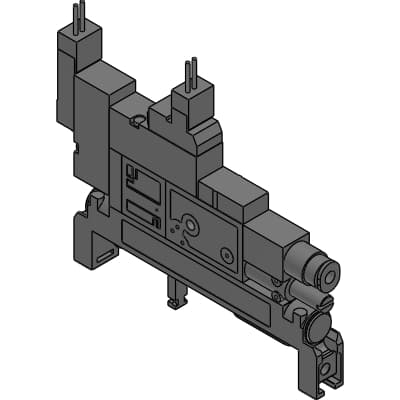

VSXM-H05B-4-1
Product ID:52363
Updated: 2026/7/14
Key Features
- 1The VSXM-H05B-4-1 features a narrow width of 10.5 mm, making it perfect for compact installations in multiple stations.
- 2Designed for high-vacuum applications with medium flow rates, this unit ensures optimal performance in various industrial settings.
- 3Available in nozzle diameters of 0.5 mm, this unit offers flexibility in suction flow rates to suit different industrial needs.
- 4Equipped with normally closed and energy-saving self-hold valves, this unit achieves rapid response times and high-cycle vacuum systems.
- 5Built with high-quality materials, including a metallic body and stainless steel components, ensuring long-lasting performance and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSXM | Vacuum characteristics | H : High vacuum/medium flow rate |
| Nozzle diameter | 05 : φ0.5 | Valve type | B : Normally closed |
| Vacuum port | 4 : φ4 push-in fitting | Solenoid valve voltage | 1 : 100 VAC |
| Vacuum pressure switch specifications | Blank : Without vacuum pressure switch | C1 | 11.2mm |
| L1 | 0.1mm |
Specifications may be subject to change without notice
