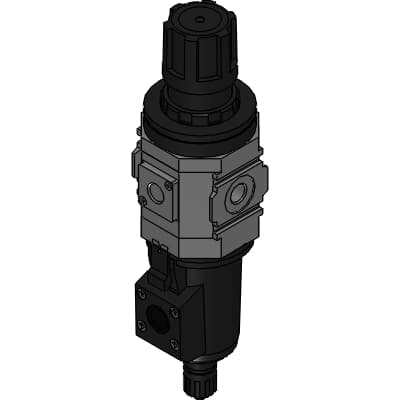

W8100-20-G4-T
Product ID:50521
Updated: 2026/7/14
Key Features
- 1Compact Modular Design: Unified dimensions for filters, regulators, and lubricators ensure easy assembly and space-saving.
- 2Long-Life Elements: CKD's original chemical fiber structure reduces clogging and extends element life.
- 3Embedded Pressure Gauge: Saves space and enhances safety by integrating the pressure gauge into the body.
- 4Corrosion-Resistant Bowl Guard: Ensures safe and durable operation in various environments.
- 5Hybrid Materials: Aluminum body and resin cover provide strength and reduce weight by 50%.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | W8100 | Port size | 20 : 3/4 |
| PTT | Blank : Rc thread | Drainage | Blank : Manual drain cock |
| Bowl material | Blank : Metal bowl (resin cock) | Element | Blank : 5μm |
| Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
| Pressure gauge | T : No pressure gauge (gauge port (1/4) is assembled sealed) | Flow direction | Blank : Standard flow (left → right) |
| Displayed unit | Blank : MPa display, Rc thread | Pipe adaptor set (attachements) | Blank : Not attached |
| Adaptor thread type | Blank : None | Bracket(attachments) | Blank : Not attached |
| Gauge(attachments) | Blank : Not attached | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/365/W%E2%80%BB%E2%80%BB00-G4?t=list&cid=67&sid=0 |
Specifications may be subject to change without notice
