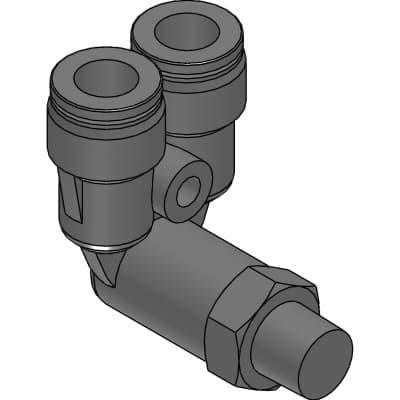

ZSP-AX8-8
Product ID:52084
Updated: 2026/7/14
Key Features
- 1Made from stainless steel (SUS303 or equivalent) for durability in corrosive atmospheres.
- 2Compatible with tubes of various diameters (Φ4, Φ6, Φ8, Φ10, Φ12) and port sizes (M5, 1/8, 1/4, 3/8, 1/2).
- 3Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from the materials.
- 4Offers a diverse range of model variations for various pneumatic piping applications.
- 5Features a robust metal body with precise engineering for reliable performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-AX8-8 | Applicable tube outer diameter φ | 8mm |
| Thread | R1/4 | A | 11.0mm |
| L | 34.0mm | G | 35.2mm |
| C1 | 13.8mm | C2 | 14.5mm |
| B | 18.1mm | P | 14mm |
| E | 4.2mm | N | 16.9mm |
| H | 14mm | F | 14.5mm |
| Effective cross section area | 14.5mm^2 | Weight | 29g |
Specifications may be subject to change without notice
