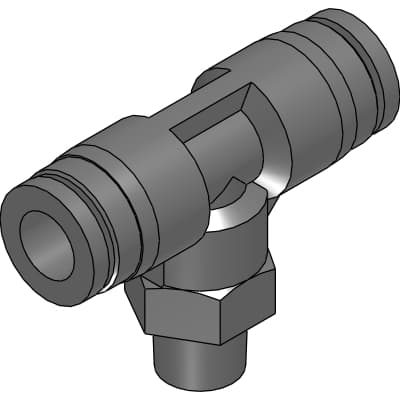

ZSP-B10-15
Product ID:50968
Updated: 2026/7/14
Key Features
- 1Made from stainless steel (SUS303 or equivalent), ensuring durability in corrosive atmospheres.
- 2A wide range of model variations for various pneumatic piping applications.
- 3Compliant with the RoHS Directive, eliminating substances harmful to the environment.
- 4Supports up to 1.0 MPa (≈150 psi) working pressure and -100 kPa (≈-15 psi) negative pressure.
- 5Available in M5, R1/8 to 1/2 port sizes, compatible with ø4 to ø12 tube O.D.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-B10-15 | Applicable tube outer diameter φ | 10mm |
| Thread | R1/2mm | A | 15.0mm |
| L1 | 40.0mm | G | 40.6mm |
| C1 | 16.8mm | C2 | 17.5mm |
| B | 20.2mm | L2 | 25.2mm |
| L3 | 50.4mm | H | 21mm |
| Effective cross section area | 30.0mm^2 | Weight | 65.0g |
Specifications may be subject to change without notice
