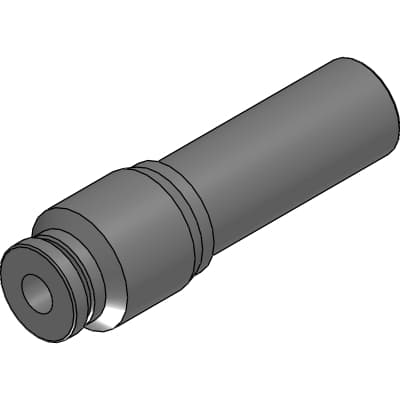

ZSP-J8-6
Product ID:52032
Updated: 2026/7/14
Key Features
- 1Made from high-quality stainless steel (SUS303 or equivalent) for durability and resistance to corrosive atmospheres.
- 2Offers precise dimensions for seamless integration into pneumatic piping systems, ensuring optimal performance.
- 3Compatible with various tube sizes and port sizes (R), including M5, 1/8, 1/4, and 3/8.
- 4Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from the materials.
- 5Designed with a robust metal body and secure locking mechanisms for reliable operation in demanding applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-J8-6 | Applicable tube outer diameter φ | 6mm |
| Fitting port size φ | 8mm | L1 | 40.8mm |
| L2 | 17.3mm | C1 | 11.8mm |
| C2 | 12.5mm | B | 17.0mm |
| Effective cross section area | 11.5mm^2 | Weight | 4.0g |
Specifications may be subject to change without notice
