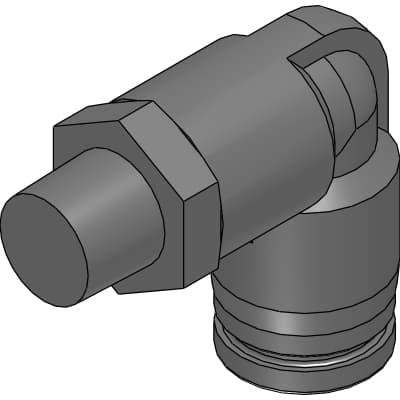

ZSP-L8_8
Product ID:52036
Updated: 2026/7/14
Key Features
- 1Made from SUS303 or equivalent stainless steel for high corrosion resistance.
- 2Suitable for various pneumatic piping systems and corrosive atmospheres.
- 3Compliant with RoHS Directive, eliminating harmful substances.
- 4Designed for use in narrow spaces with high mechanical strength.
- 5Available in multiple port sizes (R1/4) for diverse piping needs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-L8_8 | Applicable tube outer diameter φ | 8mm |
| Thread | R1/4mm | A | 11.0mm |
| L1 | 31.0mm | G1 | 32.2mm |
| C1 | 13.8mm | C2 | 14.5mm |
| B | 18.1mm | L2 | 22.7mm |
| H | 14mm | Effective cross section area | 16.5mm^2 |
| Weight | 22.0g |
Specifications may be subject to change without notice
