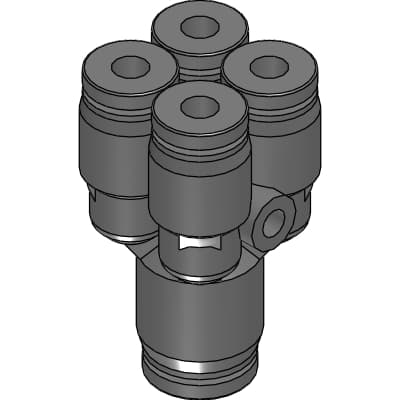

ZSP-RG8-6
Product ID:51230
Updated: 2026/7/14
Key Features
- 1Made from stainless steel (SUS303 or equivalent) for use in corrosive atmospheres.
- 2Suitable for a wide range of pneumatic piping applications, including semiconductor manufacturing and cleanrooms.
- 3Designed to handle high flow rates while maintaining flexibility in tight spaces.
- 4Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from materials.
- 5Push-in design simplifies installation and reduces air consumption by up to 75% with intermittent air (pulse blowing).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-RG8-6 | Applicable tube outer diameter φ | 8mm |
| Applicable tube outer diameter φ | 6mm | L | 42.0mm |
| C1 | 13.8mm | C2 | 11.8mm |
| C3 | 14mm | C4 | 13.0mm |
| B1 | 18.2mm | B2 | 17.0mm |
| P1 | 13mm | P2 | 13mm |
| E | 3.5mm | N | 15.8mm |
| F | 26.0mm | Effective cross section area | 8.2mm^2 |
| Weight | 20g |
Specifications may be subject to change without notice
