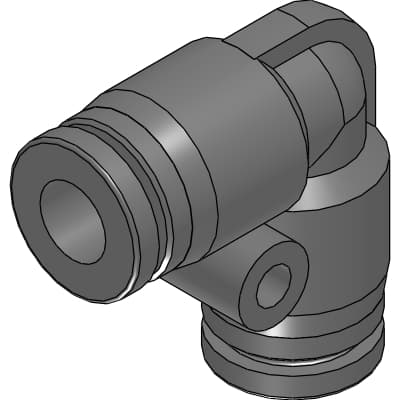

ZSP-V12
Product ID:51375
Updated: 2026/7/15
Key Features
- 1Made from high-quality stainless steel (SUS303 or equivalent) for long-lasting performance.
- 2Perfect for use in corrosive atmospheres or those susceptible to copper ions.
- 3A wide range of model variations suitable for various pneumatic piping needs.
- 4RoHS Directive compatible, eliminating substances harmful to the environment.
- 5Designed to withstand up to 1.0 MPa (≈150 psi) and negative pressure of -100 kPa (≈-15 psi).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-V12 | Applicable tube outer diameter φ | 12mm |
| C1 | 19.8mm | C2 | 21.0mm |
| B | 23.4mm | L | 29.4mm |
| E | 4.2mm | N | 14.0mm |
| F | 21.7mm | Effective cross section area | 47.0mm^2 |
| Weight | 24.0g |
Specifications may be subject to change without notice
