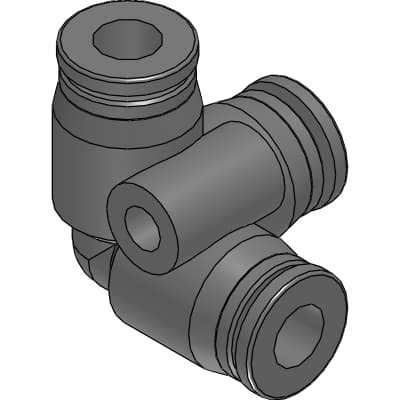

ZSP-VU12
Product ID:52147
Updated: 2026/7/14
Key Features
- 1Made from SUS303 or equivalent stainless steel for durability in corrosive atmospheres.
- 2Wide range of model variations to suit various pneumatic piping needs.
- 3RoHS Directive compatible, eliminating harmful substances for the environment.
- 4Durable and flexible due to its high mechanical strength, suitable for demanding applications.
- 5Compatible with tubes of O.D. ø4 to ø12 and port sizes from M5 to R1/2.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-VU12 | Applicable tube outer diameter φ | 12.0mm |
| C1 | 19.8mm | C2 | 21.0mm |
| B | 23.4mm | L1 | 29.4mm |
| L2 | 29.4mm | L3 | 29.4mm |
| E | 4.2mm | N | 14.0mm |
| F | 21.0mm | Effective cross section area | 40.2mm^2 |
| Weight | 34.0g |
Specifications may be subject to change without notice
