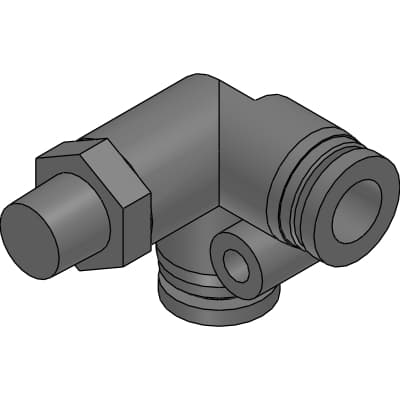

ZSP-VX4-M5
Product ID:52258
Updated: 2026/7/14
Key Features
- 1High-functionality with improved environmental performance.
- 2Enhanced safety and reliability through superior main valve sliding structure.
- 3Long-lasting with low sliding friction and specially designed packing.
- 4Easy manifold selection model available as a single unit.
- 5Compatible with various industrial applications including assembly, handling, and inspection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-VX4-M5mm | Applicable tube outer diameter φ | 4mm |
| Thread | M5x0.8mm | A | 3.2mm |
| L1 | 21.7mm | G | 23.5mm |
| C1 | 9.9mm | C2 | 10.0mm |
| B | 14.9mm | L2 | 16.9mm |
| H | 10.0mm | E | 3.2mm |
| N | 6.5mm | F | 10.0mm |
| Effective cross section area | 2.3mm^2 | Weight | 11g |
Specifications may be subject to change without notice
