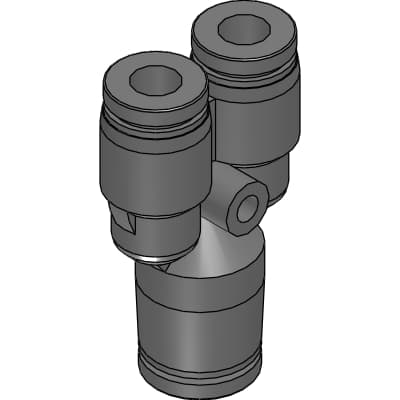

ZSP-W8-6
Product ID:52236
Updated: 2026/7/14
Key Features
- 1Stainless Steel Body: Made from SUS303 or equivalent stainless steel for durability and resistance to corrosive atmospheres.
- 2Wide Variations: Offers a diverse range of model variations to fit various pneumatic piping needs.
- 3Environment-Friendly: Compliant with the RoHS Directive, ensuring all harmful substances are eliminated from the materials.
- 4High-Quality Construction: Utilizes hydrogenated nitrile rubber and stainless steel components for reliable performance.
- 5Versatile Applications: Suitable for use in assembly, air pressure supply, filtration, and other industrial processes.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-W8-6 | Applicable tube outer diameter φ | 8mm |
| Applicable tube outer diameter φ | 6mm | L | 42.5mm |
| C1 | 13.8mm | C2 | 11.8mm |
| C3 | 14.5mm | C4 | 12.5mm |
| B1 | 18.1mm | B2 | 17.0mm |
| P | 14mm | E | 3.4mm |
| N | 17.3mm | F | 15.1mm |
| Effective cross section area | 8.0mm^2 | Weight | 13.0g |
Specifications may be subject to change without notice
