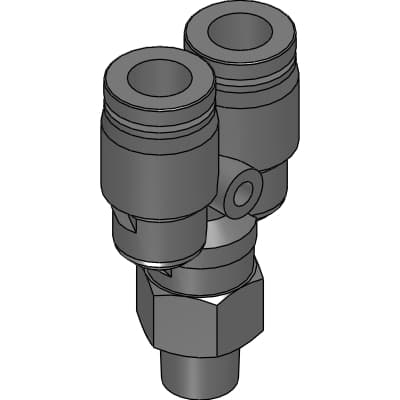

ZSP-X6-6
Product ID:52148
Updated: 2026/7/14
Key Features
- 1High-quality stainless steel (SUS303 or equivalent) metal body for durability and resistance to corrosive atmospheres.
- 2Diverse range of model variations to fit various pneumatic piping needs.
- 3Environment-friendly products compliant with the RoHS Directive, ensuring minimal environmental impact.
- 4Perfect for use in corrosive or copper-ion susceptible atmospheres, making them suitable for demanding applications.
- 5Wide range of port sizes available, including M5, R1/8, R1/4, and more, for versatile installation options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-X6-6 | Applicable tube outer diameter φ | 6mm |
| Thread | R1/8 | A | 8.0mm |
| L | 44.4mm | G | 40.4mm |
| C1 | 11.8mm | C2 | 12.5mm |
| B | 17.0mm | P | 12mm |
| E | 3.4mm | N | 15.8mm |
| H | 12mm | F | 13.5mm |
| Effective cross section area | 10.0mm^2 | Weight | 17.0g |
Specifications may be subject to change without notice
