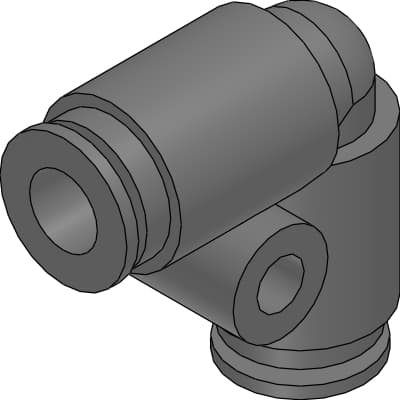

ZW-L4-0
Product ID:51220
Updated: 2026/4/3
Key Features
- 1Compact size saves space.
- 2Smooth insertion and secure sealing.
- 3Flame-resistant resin incorporated in white body and push ring (UL94 Standards V-0 equivalent).
- 4Stainless steel used for all metal parts.
- 5Compatible with tubes of Φ4, Φ6, Φ8, Φ10, Φ12 diameters.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZW-L4-0 | Applicable tube outer diameter φ | 4mm |
| L | 18.5mm | B | 16.0mm |
| C | 10.0mm | N | 7.5mm |
| E | 4.2mm | F | 11.0mm |
| BORE | 2.5mm | Effective cross section area | 3.0mm^2 |
| Weight | 5.2g |
Specifications may be subject to change without notice
