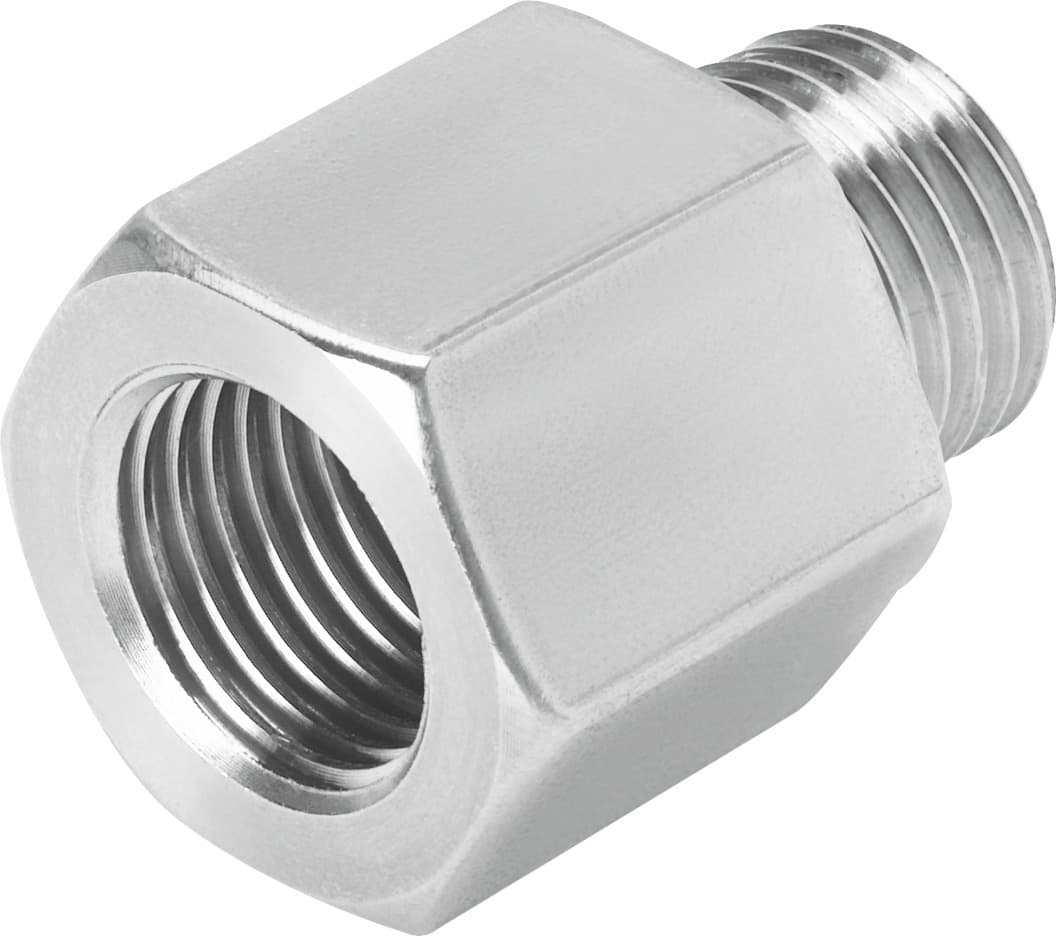

ad-3/8npt-g3/8-i
Product ID:9
Updated: 2026/7/4
Key Features
- 1Convert 3/8" NPT male to G3/8" ISO female threads securely.
- 2Handle operating pressures from -0.95 bar to +10 bar reliably.
- 3Resist corrosion with CRC 1 rating for extended service life.
- 4Construct from robust zinc-plated steel for harsh industrial environments.
- 5Operate effectively in ambient temperatures from -10°C to +60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 11.5mm | Operating pressure for entire temperature range | -0.95bar 10bar |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. tightening torque, pneumatic connection 1 | 22Nm |
| Max. tightening torque, pneumatic connection 2 | 25Nm | Product weight | 25.98g |
| Pneumatic connection 1 | external thread 3/8 NPT | Pneumatic connection 2 | Internal thread G3/8 |
| Note on materials | RoHS-compliant | Seals material | PVC |
| Housing material | Steel, galvanized | Manufacturer ID | 9626 |
Specifications may be subject to change without notice
