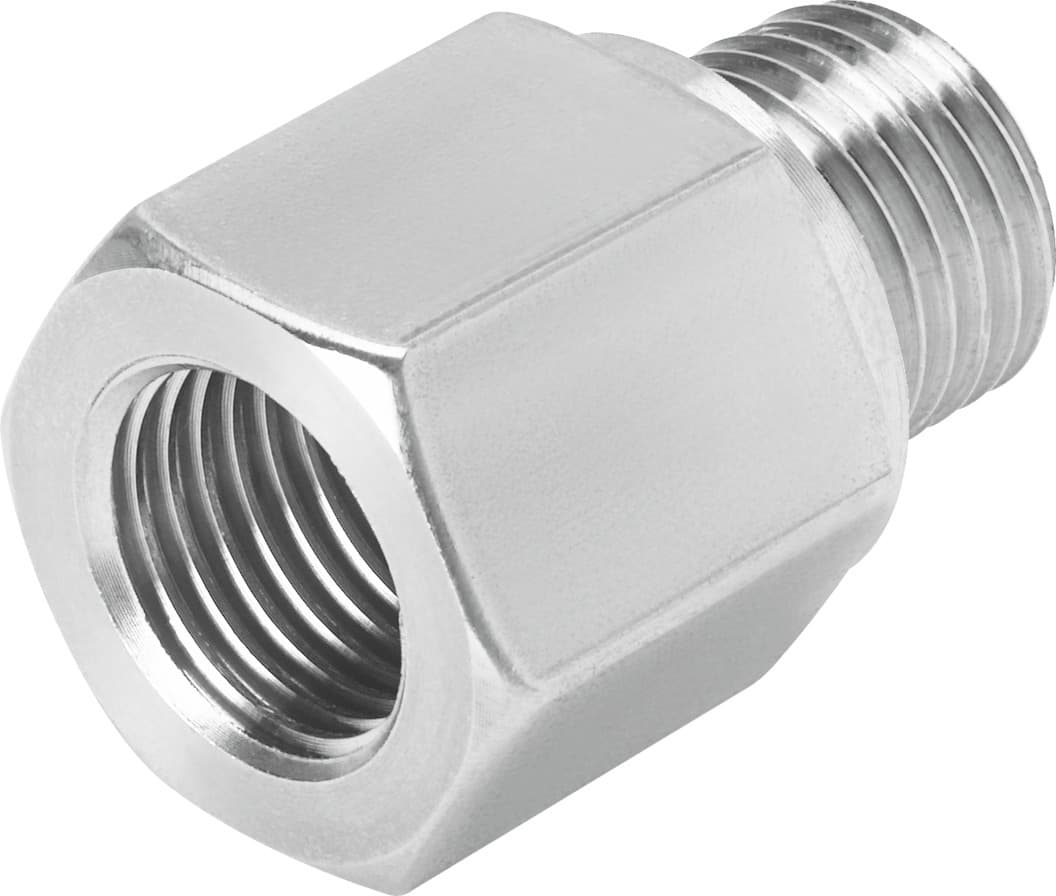

ad-g1/2-1/2npt-i
Product ID:20
Updated: 2026/4/2
Key Features
- 1Ensure seamless and leak-free pipe connections for optimal system performance. 2、Construct with high-quality, durable materials for harsh industrial environments. 3、Simplify installation with a straightforward design to reduce downtime. 4、Apply across versatile pneumatic systems in manufacturing and logistics. 5、Secure a tight seal with the reliable 24mm external HEX thread sealing ring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 14.3mm | Operating pressure for entire temperature range | -0.95bar 10bar |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. tightening torque, pneumatic connection 1 | 40Nm |
| Max. tightening torque, pneumatic connection 2 | 28Nm | Nominal tightening torque | 47.9Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 51.89g |
| Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | Female thread 1/2 NPT |
| Note on materials | RoHS-compliant | Seals material | PVC |
| Housing material | Steel, galvanized | Manufacturer ID | 9398 |
Specifications may be subject to change without notice
