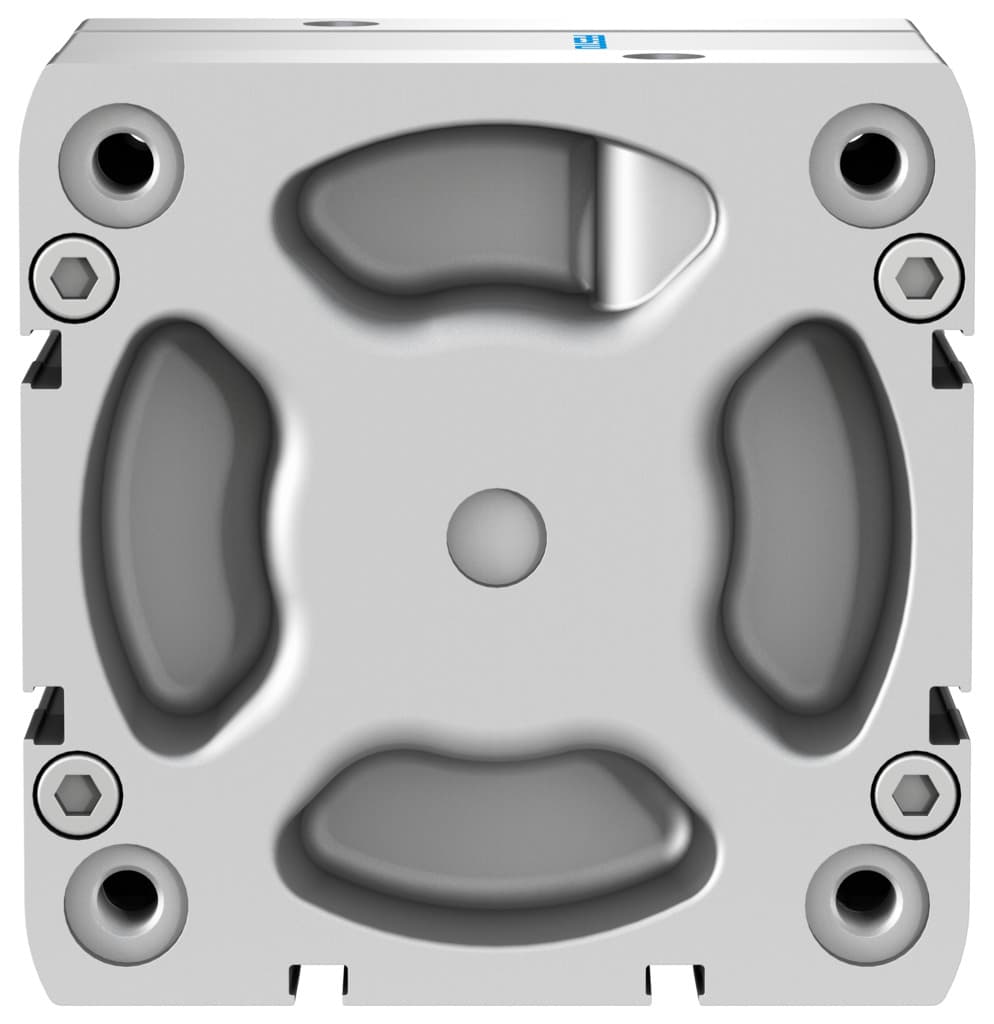

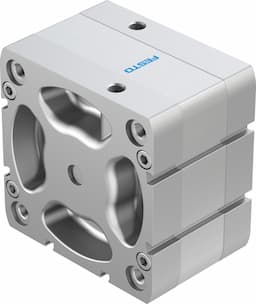

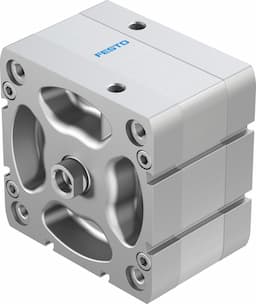

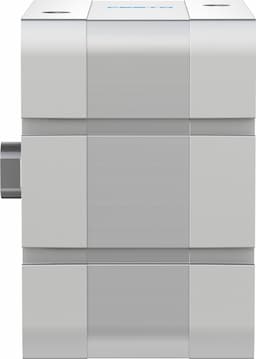

adn-100-10-i-p-a
Product ID:10167
Updated: 2026/4/4
Key Features
- 1Achieve precise movement with a 10 mm stroke and 100 mm piston diameter. 2、Reduce wear using elastic cushioning rings for smooth operation. 3、Install flexibly in any position for easy system integration. 4、Ensure international compliance with ISO 21287 certification. 5、Enable precise detection with a piston rod female thread for switches.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 100 mm |
| Piston rod thread | M12 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Theoretical force at 6 bar, retracting | 4524N | Theoretical force at 6 bar, advancing | 4712N |
| Moving mass | 477g | Product weight | 1697g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536384 |
Specifications may be subject to change without notice
