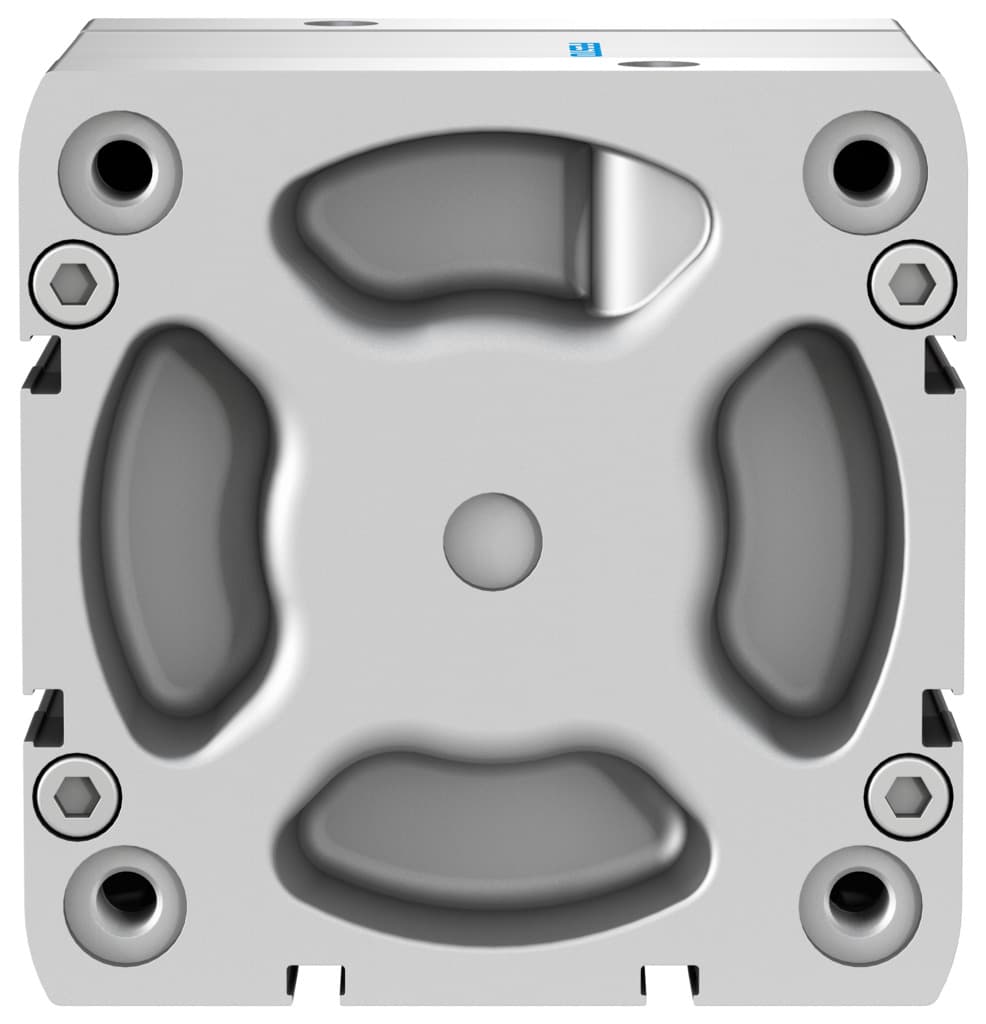

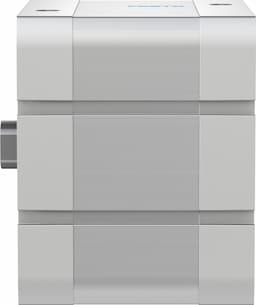

adn-100-25-i-pps-a
Product ID:14584
Updated: 2026/7/14
Key Features
- 1Maximize space with a compact design for tight installations.
- 2Ensure smooth operation using self-adjusting pneumatic end-position cushioning.
- 3Achieve precise bidirectional control in double-acting applications.
- 4Enhance durability with a high-alloy steel piston rod and TPE-U seals.
- 5Guarantee reliability and compliance with ISO 21287 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 100 mm |
| Piston rod thread | M12 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
| Theoretical force at 6 bar, advancing | 4712N | Moving mass | 545g |
| Product weight | 1875g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577193 |
Specifications may be subject to change without notice
