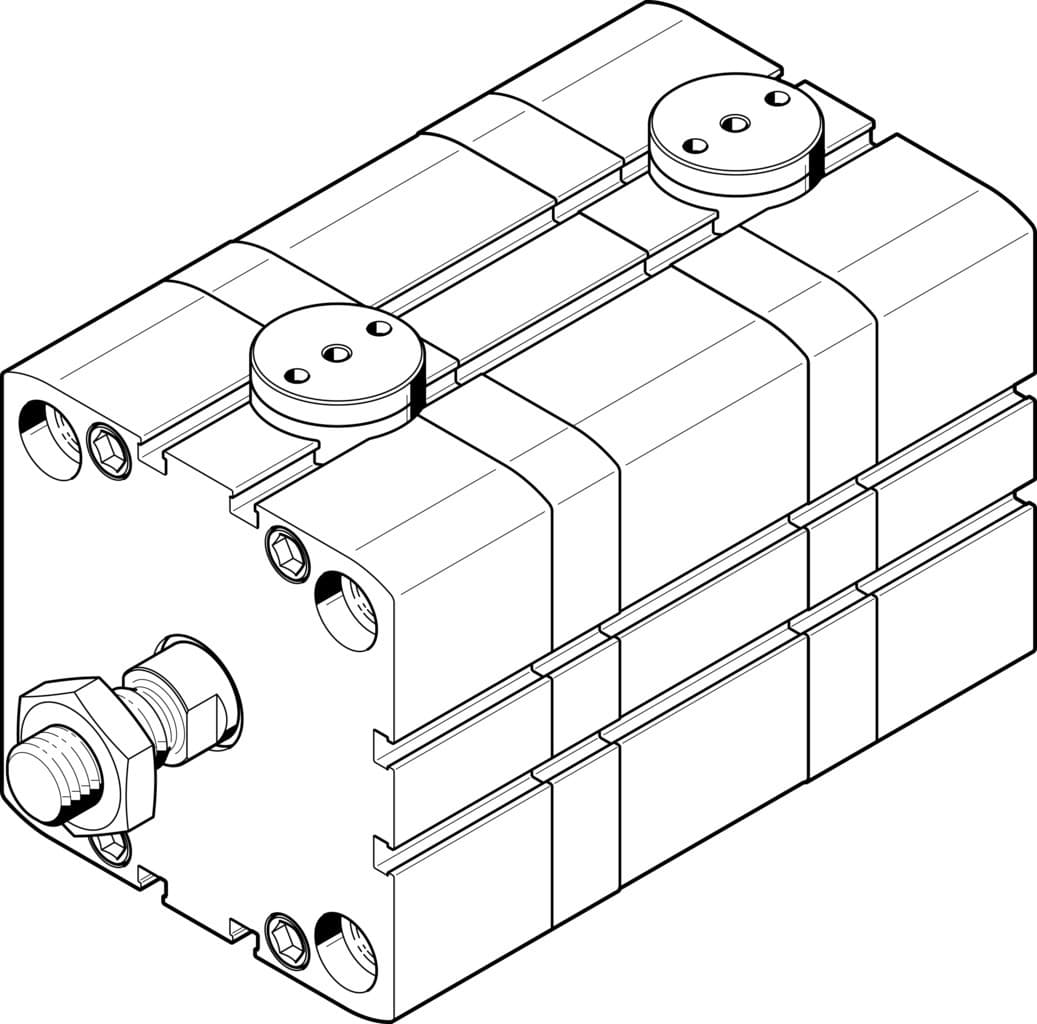

adn-100- -el-
Product ID:11592
Updated: 2026/7/13
Key Features
- 1Ensure robust performance with high-alloy steel and aluminum construction.
- 2Conform to ISO 21287 standards for guaranteed compatibility.
- 3Improve running performance using elastic cushioning rings.
- 4Enable precise positioning via integrated sensor slots.
- 5Obtain high corrosion protection for harsh industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 500mm | Piston diameter | 100 mm |
| Piston rod thread | M16x1.5 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Theoretical force at 6 bar, retracting | 4524N | Theoretical force at 6 bar, advancing | 4712N |
| Additional moving mass per 10?mm stroke | 25g | Type of mounting | With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548221 |
Specifications may be subject to change without notice
