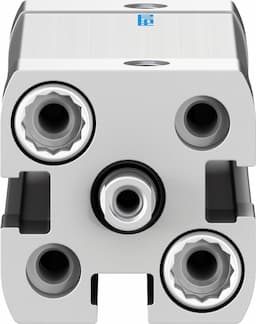

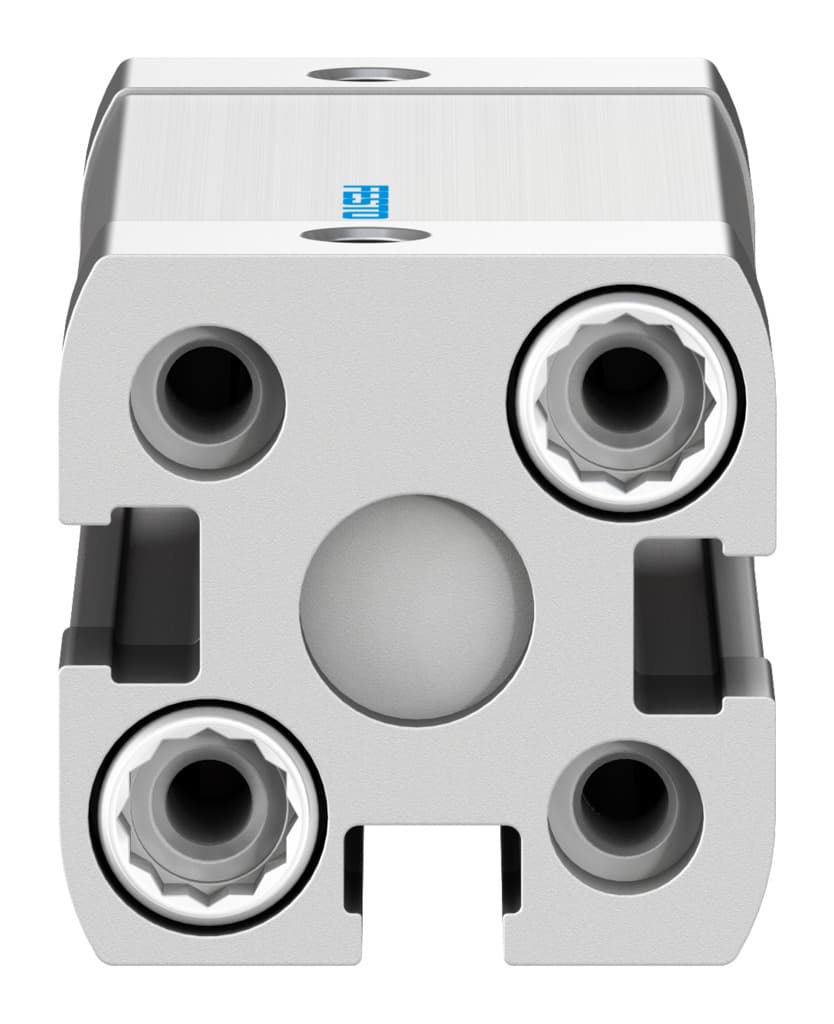

adn-12-35-i-p-a
Product ID:279
Updated: 2026/4/3
Key Features
- 1Engineer precise micro-movements with a 12 mm piston and 35 mm stroke. 2、Reduce wear and extend lifespan using elastic cushioning rings. 3、Adapt to various setups with through-hole and female thread mounting. 4、Ensure industry compliance by meeting the ISO 21287 standard. 5、Achieve reliable performance in compact, high-density applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 35mm | Piston diameter | 12 mm |
| Piston rod thread | M3 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.07J | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 68N | Moving mass | 17g |
| Product weight | 105g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178328 |
Specifications may be subject to change without notice
